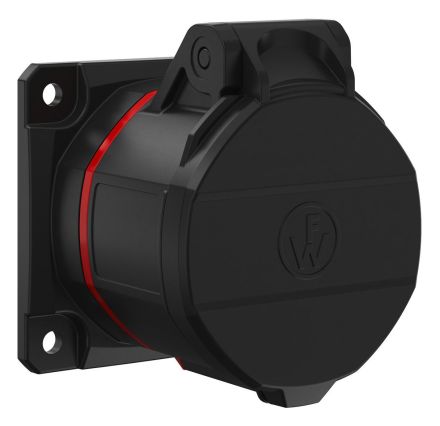

Walther FW410506SK NEO 16A 5p 6h IP54 straight screw connection CEE wall socket

In stock

SKU: 639274

Price on request

€13.25

€0

Overview

WALTHER CEE NEO surface-mounted socket straight, with screw technology, 16A 5P 6h IP54 200/346V - 240/415V ~, with color ring coding red, housing made of PA6 material, with highly heat-resistant contact carrier made of PA66 material, back-of-the-hand safe according to BGV A3, flange size 75x75mm, mounting size 60x60mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP54
Material:	plastic
Military version:	no
Horizontal hole spacing:	60 mm
Vertical hole spacing:	60 mm
Horizontal flange dimension:	75 mm
Vertical flange dimension:	75 mm
Cable entry:	other
Rated voltage:	400 V
Rated frequency:	60 Hz
