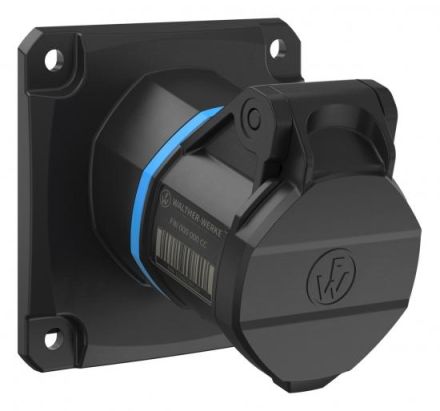

Walther FW510306CC NEO 16A 3P 6h IP54 angled cage clamp CEE panel socket

In stock
SKU: 834140
€13.09
Into a basketIn the basketGo

Overview

WALTHER CEE NEO panel socket, angled, with cage clamp technology, with color ring coding blue, 16A 3P 6h 200-250V~, housing made of PA6 material, with highly heat-resistant contact carrier made of PA66 material, back of the hand safe according to BGV A3, flange size 86x86mm, mounting size 69.5x69.5mm

Property Value
IEC current: 16 A
UL/CSA current (if UL version required): 20 A
Number of poles: 3
Connection technology: screwless terminal
Plug direction: angled
Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
Time setting: 6 h
Identification color: blue
Protection class (IP): IP54
Material: plastic
Military version: no
Hole spacing horizontal: 69.5 mm
Hole spacing vertical: 69.5 mm
Flange dimension horizontal: 86 mm
Flange dimension vertical: 86 mm
Cable entry: other
Rated voltage: 250 V
Rated frequency: 60 Hz

Characteristics

Rated frequency60 Hz
HABNEO 16A 3P 6h IP54 angled cage clamp
ManufacturerWalther
HANFW510306CC
GTIN4015609085064
Connection technologyScrewless terminal
Rated voltage250V
IEC current16A
Cable entryOther
Identification colorBlue
Military versionNo
Number of poles3
IP protection)IP54
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Plug directionAngled
UL/CSA current rating (if UL version required)20A
Time position6 hours
MaterialPlastic
