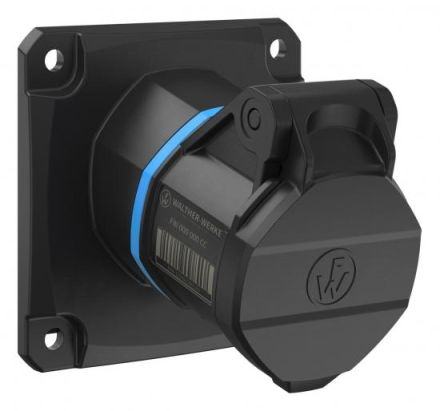

Walther FW510306SK NEO 16A 3P 6h IP54 angled screw connection CEE wall socket

In stock

SKU: 834143

Price on request

€12.41

€0

Overview

WALTHER CEE NEO panel socket, angled, with screw connection, with color ring coding blue, 16A 3P 6h 200-250V~, housing made of PA6 material, with highly heat-resistant contact carrier made of PA66 material, back-of-the-hand safe according to BGV A3, flange size 86x86mm, mounting size 69.5x69.5mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	3
Connection technology:	screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time setting:	6 h
Identification color:	blue
Protection class (IP):	IP54
Material:	plastic
Military version:	no
Hole spacing horizontal:	69.5 mm
Hole spacing vertical:	69.5 mm
Flange dimension horizontal:	86 mm
Flange dimension vertical:	86 mm
Cable entry:	other
Rated voltage:	250 V
Rated frequency:	60 Hz
