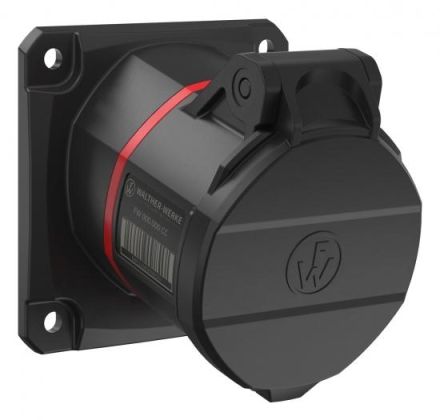

Walther FW510506SK NEO 16A 5p 6h IP54 angled screw connection CEE wall socket

In stock

SKU: 639276

Price on request

€12.65

€0

Overview

WALTHER CEE NEO panel socket, angled, with screw technology, 16A 5P 6h IP54 200/346V - 240/415V ~, with color ring coding red, housing made of PA6 material, with highly heat-resistant contact carrier made of PA66 material, back of the hand safe according to BGV A3, flange size 86x86mm, mounting size 69.5x69.5mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP54
Material:	plastic
Military version:	no
Horizontal hole spacing:	69.5 mm
Vertical hole spacing:	69.5 mm
Horizontal flange dimension:	86 mm
Vertical flange dimension:	86 mm
Cable entry:	other
Rated voltage:	400 V
Rated frequency:	60 Hz
