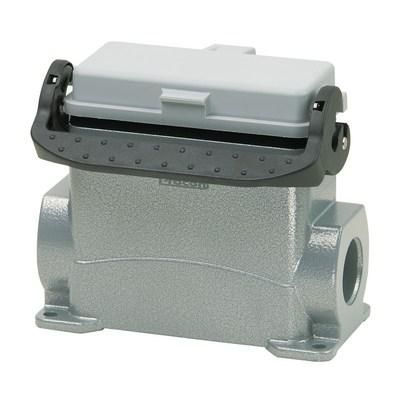

Walther P711616MS 16-pin 1xM25 68mm high socket housing

In stock
SKU: 485950
€25.85
Into a basketIn the basketGo

Overview

WALTHER base housing, die-cast aluminum housing, height 68mm, with longitudinal locking bracket made of plastic, with an M25 connector, and hinged lid made of plastic, protection class: IP65, for the series B16, BA6, BB32, D40, DD72 and MOB16

Property Value
Width: 117 mm
Height: 68 mm
Housing design: Base housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Cable feed arrangement: side
Locking type: Longitudinal bracket
With hinged lid: yes
EMC version: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Material of the housing: Aluminium
Flammability class of the insulation material according to UL 94: V0
Housing coating: powder-coated
Bracket position: Bottom part
Depth: 57 mm
Housing colour: grey
Cable gland fastening type: metric
With Nozzle: yes
With seal: yes
Number of cable entries: 1

Characteristics

HABP711616MS 16-pin 1xM25 68mm high
ManufacturerWalther
HANP711616MS
GTIN4015609608072
Number of cable entries1
Housing coatingPowder coated
Operating temperatur-40 to 125 °C
Width117 mm
Flammability class of the insulating material according to UL 94V0
EMC versionNo
Housing colorGray
Height68 mm
With hinged lidYes
Depth57 mm
UV-resistantYes
Housing materialAluminum
