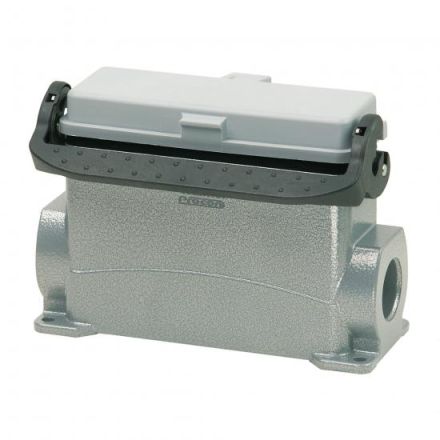

Walther P711624MS 24-pin 1xM25 68mm hinged cover socket housing

In stock

SKU: 485945

Price on request

€30.64

€0

Overview

WALTHER base housing, die-cast aluminum housing, height 68mm, with longitudinal locking bracket made of plastic, with an M25 connector, and hinged lid made of plastic, protection class: IP65, for the series B24, BB46, D64, DD108 and MOB24

Property	Value
Width:	144 mm
Height:	68 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	yes
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	Bottom part
Depth:	57 mm
Housing colour:	grey
Cable gland fastening type:	metric
With Nozzle:	yes
With seal:	yes
Number of cable entries:	1
