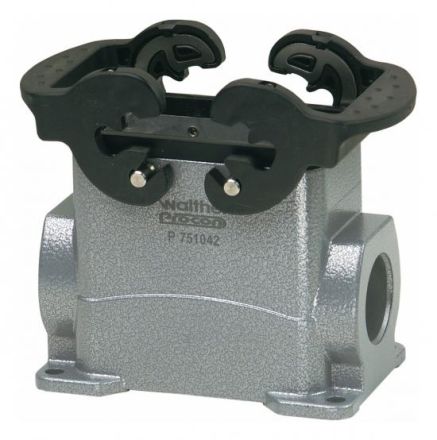

Walther P751042MS 10-pin 1xM25 74mm high socket housing

In stock

SKU: 486588

Price on request

€23.25

€0

Overview

WALTHER base housing Die-cast aluminum housing with a height of 74 mm with cross-locking brackets made of plastic and an M25 connection piece Protection class: IP65 for the series B10, BB18, DD42 and MOB10

Property	Value
Width:	93 mm
Height:	74 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	53 mm
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	yes
With seal:	yes
Number of cable entries:	1
