Walther T701832MS A32 socket housing5

In stock

SKU: 485991

Price on request

€25.32

€0

Overview

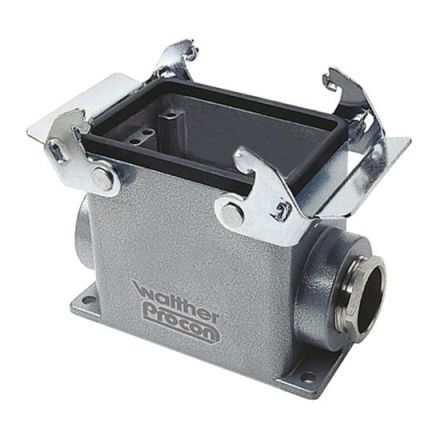

WALTHER base housing, die-cast aluminum housing, height 81.5mm, with cross-locking brackets made of galvanized steel, and an M32 connector, protection class: IP65, for the A32 and D50 series

Property	Value
Width:	106 mm
Height:	81.5 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	side
Locking type:	Cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	70 mm
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	yes
With seal:	yes
Number of cable entries:	1
