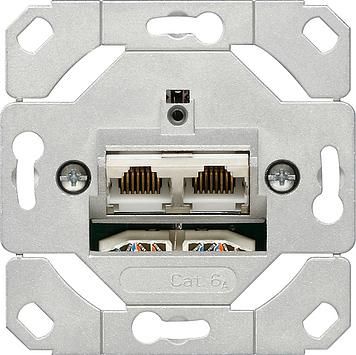

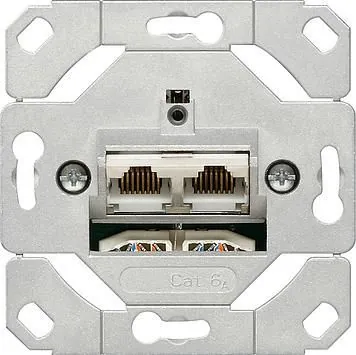

Insert network connection box Cat.6A 2-way insulation displacement technology
Features:
Shielded network connection box Cat.6A with two RJ45 (8 8) connection sockets for data transfer rates of up to 10 Gbit Ethernet in accordance with IEEE 802.3an.
45 angled outlet for parapet duct, floor tank and flush-mounted installation.
Cable feed possible from all directions in 8 x 45 steps.
Notes:
Only for screw fastening.
Attention! Note the installation space for plugs and bending radii.
Installation recommendation: Kaiser electronic boxes Flush-mounted installation: Kaiser Order No.: 1068-02 Hollow wall installation: Kaiser Order No.: 9062-94 Concrete installation: Kaiser Order No.: 1268-40
Only for screw fastening.
| Property | Value |
| Mounting type: | Claw/screw fastening |
| Color: | other |
| Labeling field: | without labeling field |
| Use: | other |
| With dust protection: | no |
| Installation type: | Flush-mounted |
| Surface: | other |
| With hinged lid: | no |
| Composition: | Base element |
| Support ring: | no |
| With print: | no |
| Material: | other |
| Material quality: | other |
| Halogen-free: | no |
| Lamp terminal: | no |
| Transparent: | no |
| Outlet direction: | bottom |
| With bushings/couplings: | no |
