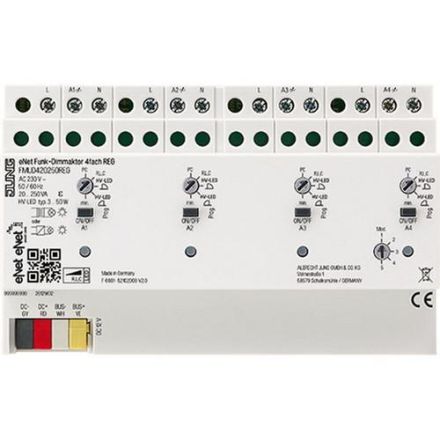

Jung FMUD420250REG REG 4-channel radio universal dimming actuator

In stock
SKU: 984062
€416.01
Into a basketIn the basketGo

Overview

REG housing 8 HP, new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0, Intended use, Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps, Operation with power supply 12 V REG (item no. NT 1220 REG VDC) and eNet radio receiver module REG (item no. FM FK 32 REG) or eNet server, Operation with suitable eNet radio transmitters, Installation on top hat rail according to DIN EN 60715 in sub-distribution board, Product features, Switching on by means of lamp-friendly soft start, Switch-on brightness can be permanently saved for each output, Minimum brightness can be permanently saved for each output, Scene operation possible, Status display of the outputs via LED, status feedback to radio transmitter, outputs can be switched with the Prog button, increase in output power possible by connecting several outputs in parallel, electronic short-circuit protection with permanent shutdown after 7 seconds at the latest, electronic overtemperature protection, automatic or manual setting of the dimming principle suitable for the load, power extension using power additives (item no. ULZ 1755 REG) possible, Optional accessories: LED compensation module, Item no.: KM LED 230 U , Can be set with eNet server:, Maximum brightness, Dimming speed, On/off delay, Dimming up/down ramp, Pre-warning for switch-off, Operating locks, Permanent on, Permanent off, Hotel function, Run-on time, Additional functions with eNet server:, Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0, Update of device software, Read error memory, Nominal voltage: AC 230 V ~, 50/60 Hz, Power loss: max. 8 W, Standby power: max. 1.2 W, Ambient temperature: 5 ... +45 °C, Connected load per output at 45 °C, Power specifications including transformer power loss., Operate inductive transformers with at least 85% of nominal load., With ohmic-i

Characteristics

HABFMUD420250REG REG 4-channel
ManufacturerJung
HANFMUD420250REG
GTIN4011377087545
Jung FMUD420250REG REG 4-channel radio universal dimming actuator
Jung FMUD420250REG REG 4-channel radio universal dimming actuator
€416.01
