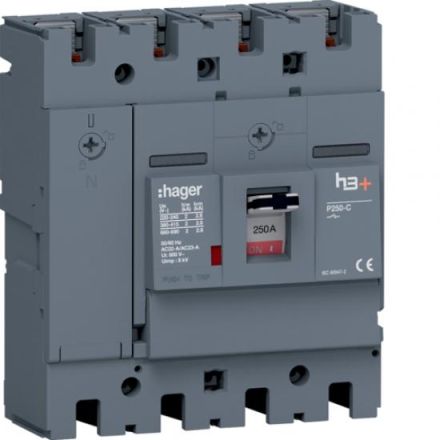

Hager HCT251AR h3+ P250 4 pole 250A FTC load break switch

Hager HCT251AR h3+ P250 4 pole 250A FTC load break switch

In stock

SKU: 432163

Price on request

€625.39

€0

Overview

Load-break switch h3+ P250 4-pole 250A FTC. The load-break switch in accordance with DIN EN 60947-3 separates the incoming and outgoing sides in electrical systems. The two different operating states can be identified by the position of the knob (ON = top, OFF = bottom). A device for locking the switching state in the ON or OFF position is integrated and can be used with a standard padlock without additional accessories. A hinged cover with a captive quick-release screw enables access to the installation space for optional auxiliary contacts and other releases. Integrated accessories can be seen and identified through the viewing window without opening the hinged lid.

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	254 kW
Rated continuous current Iu:	250 A
Max. Rated operating voltage Ue at AC:	690 V
Design as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP40
Connection type main circuit:	Cable clamp
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Toggle
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Design as safety switch:	no
Motor drive optional:	yes
Lockable:	yes
Design as reversing switch:	no
Rated short-time withstand current Icw:	3.6 kA
Color of the actuating element:	grey
Rated operating voltage:	220 to 690 V
Rated continuous current at AC-21, 400 V:	250 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	250 A
Protection class (NEMA):	other
