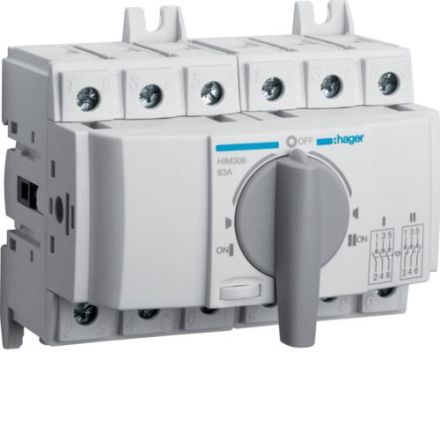

Hager HIM306 load changeover switch 3-pole 63A

In stock

SKU: 159656

Price on request

€203.90

€0

Overview

Load changeover switch 3-pole 63A for top hat rail/mounting plate. Modular 3-pole changeover switch according to DIN EN 60947-3, for switching under load between 2 low-voltage circuits. With safety separation and 3 switch positions I-0-II. Suitable for mounting on a top hat rail or mounting plate.

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	28 kW
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	415 V
Emergency stop device design:	no
Protection class (IP), front:	IP20
Main circuit connection type:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional Rated short-circuit current Iq:	50 kA
Integrated motor drive:	no
Suitable for 4-hole front mounting:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for central front mounting:	no
Suitable for intermediate installation:	no
Suitable for Distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	yes
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	yes
Rated short-time withstand current Icw:	1.5 kA
Color of the actuating element:	gray
Rated operating voltage:	380 to 415 V
Switching capacity at 400 V:	41 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	other
