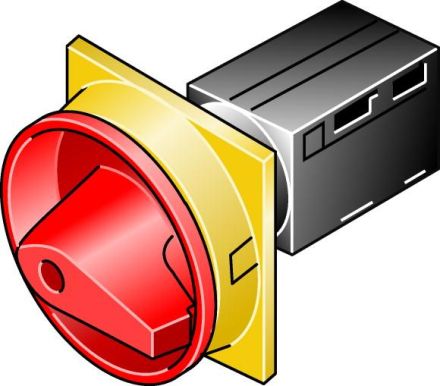

Eaton TM-1-8291/E/SVB 45478 main switch installation, 045478

Eaton TM-1-8291/E/SVB 45478 main switch installation, 045478

In stock

SKU: 228097

Price on request

€34.06

€0

Overview

Auxiliary current isolating switch, Product range: Control switch, Type reference: TM, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Note: up to 250 V AC per contact, Contacts: 2, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Built-in, Switching angle: 90 °, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated continuous current: Iu = 10 A, 1 unit(s), Standards and regulations: IEC/EN 60947,0660, CSA, UL, Control switch according to IEC/EN 60947-5-1, Auxiliary current switch according to IEC/EN 60947-5-1

Property	Value
Number of poles:	2
Rated operational power at AC-23, 400 V:	3 kW
Rated continuous current Iu:	10 A
Max. Rated operating voltage Ue at AC:	500 V
Design as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP65
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Color of the actuator:	red
Rated operating voltage:	500 V
Number of switches:	1
Protection class (NEMA):	12
