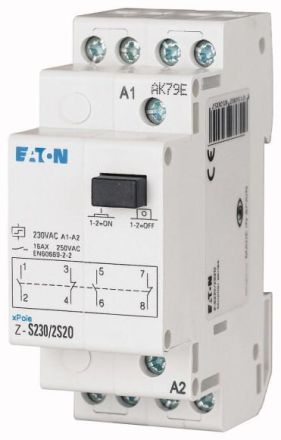

Eaton Z-S230/2S2O impulse switch, 230AC, 2S+2Ö, 32A, 50Hz, 2TE, 265305

In stock
SKU: 219207
€46.10
Into a basketIn the basketGo

Overview

Impulse switch, control voltage 230V 50Hz, function: 2 NO contacts and 2 NC contacts, rated current at 250V AC according to IEC/EN 60669-2-2: 16A, cap installation dimension 45mm, installation width 2TE (35mm), DIN rail mounting, terminal cross-section 0.5-10 mm² single and multi-wire / 0.5-6 mm² fine-wire with wire end ferrule

PropertyValue
Width in modular spacing:2
Rated switching current:16 A
Control voltage 1:230 V
Control voltage type 1:AC
Control voltage type 2:AC
Installation depth:60 mm
Function:mechanical switch
Mounting type:DIN rail
Frequency of control voltage 1:50 Hz
Type of supply voltage:AC
Supply voltage:240 to 415 V
Number of contacts as normally open:2
Number of contacts as normally closed:2

Characteristics

Type of voltage of the supply voltageAC
Supply voltage240 to 415 V
HABZ-S230/2S2O
ManufacturerEaton
HAN265305
GTIN4015082653057
Number of contacts as normally open2
Number of contacts as opener2
Width in pitch units2
Installation depth60 mm
FunctionMechanical switch
Mounting typeDIN rail
Supply voltage240 to 415 V
