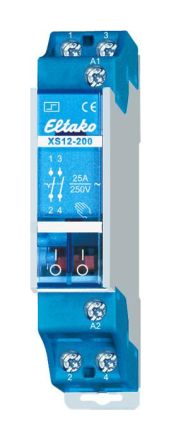

Eltako 21200930 impulse switch XS12-200-230V

In stock

SKU: 187577

Price on request

€22.43

€0

Overview

2-pole 25A/250V AC. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switch position indicator. 1 division unit = 18mm wide, 55mm deep. Duty cycle 100%. Control power requirement 5-6W. Contacts: 2 normally open contacts. Contact spacing 3mm.

Property	Value
Width in pitch units:	1
Rated switching current:	25 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Installation depth:	55 mm
Function:	other
Mounting type:	DIN rail
Frequency of control voltage 1:	50 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	3600 VA
Max. fluorescent lamp load (duo circuit):	3600 VA
Max. fluorescent lamp load (parallel compensated):	1000 VA
Max. Switching current (cos phi = 0.6):	15 A
Number of contacts as normally open:	2
