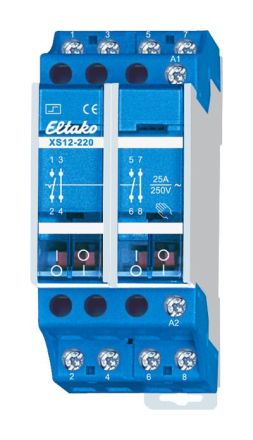

Eltako 21220930 impulse switch XS12-220-230V

In stock

SKU: 187571

Price on request

€39.03

€0

Overview

Electromechanical impulse switch with manual operation and switch position indicator. Duty cycle: pulse control only. Control power requirement 12-15W. Contact spacing 3mm.

Property	Value
Width in pitch units:	2
Rated switching current:	25 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Installation depth:	55 mm
Function:	other
Mounting type:	DIN rail
Frequency of control voltage 1:	50 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	2300 VA
Max. fluorescent lamp load (duo circuit):	2300 VA
Max. fluorescent lamp load (parallel compensated):	1000 VA
Max. Switching current (cos phi = 0.6):	15 A
Number of contacts as normally open:	2
Number of contacts as normally closed:	2
