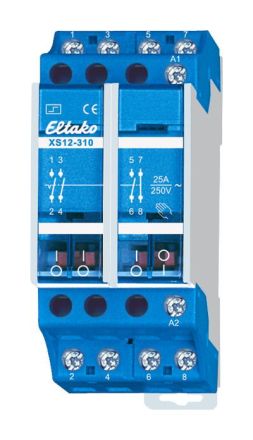

Eltako 21310930 impulse switch XS12-310-230V

In stock
SKU: 187574
€27.36
Into a basketIn the basketGo

Overview

4-pole 25 A/250 V AC. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switch position indicator. 2 division units = 36 mm wide, 55 mm deep. Duty cycle: pulse control only. Control power requirement 12-15 W. Contacts: 3 make contacts and 1 break contact. Contact spacing 3 mm.

Property Value
Width in pitch units: 2
Rated switching current: 25 A
Control voltage 1: 230 V
Control voltage type 1: AC
Installation depth: 55 mm
Function: other
Mounting type: DIN rail
Frequency of control voltage 1: 50 Hz
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. fluorescent lamp load (parallel compensated): 1000 VA
Max. Switching current (cos phi = 0.6): 15 A
Number of contacts as normally open: 3
Number of contacts as normally closed: 1

Characteristics

Max. fluorescent lamp load3600 VA
ManufacturerELTAKO
HAN21310930
GTIN4010312101704
Number of contacts as normally open3
Number of contacts as opener1
Width in pitch units2
Installation depth55 mm
FunctionOther
Mounting typeDIN rail
