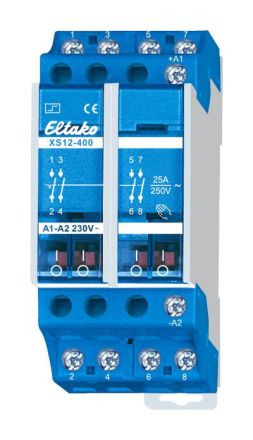

Eltako 21400930 impulse switch XS12-400-230V

In stock

SKU: 187514

Price on request

€40.77

€0

Overview

4-pole 25 A/250 V AC. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switch position indicator. 2 division units = 36 mm wide, 55 mm deep. Duty cycle: pulse control only. Control power requirement 12-15 W. Contacts: 4 make contacts. Contact spacing 3 mm.

Property	Value
Width in pitch units:	2
Rated switching current:	25 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Installation depth:	55 mm
Function:	other
Mounting type:	DIN rail
Frequency of control voltage 1:	50 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	3600 VA
Max. fluorescent lamp load (duo circuit):	3600 VA
Max. fluorescent lamp load (parallel compensated):	1000 VA
Max. Switching current (cos phi = 0.6):	15 A
Number of contacts as normally open:	4
