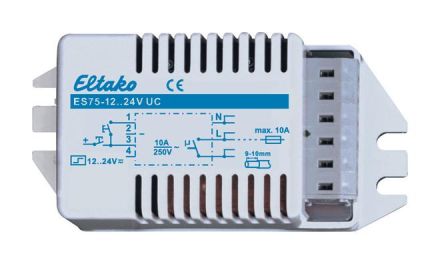

Eltako 60100055 impulse switch ES75-12..24V UC

In stock
SKU: 187521
€38.84
Into a basketIn the basketGo

Overview

1 normally open contact, not potential-free, 10A/250V AC, 230V LED lamps up to 200W, incandescent lamps 500W. Standby loss only 1 watt. For built-in installation. 85mm long, 40mm wide, 28mm deep. With integrated transformer for galvanic isolation between control circuit and circuit to meet the requirements for safety extra-low voltage SELV according to EN 60669-2-2. The safety requirement 2x MOPP according to EN 60601-1 is also met. Control with the internal voltage or an external control voltage of 12 to 24V UC, control current 10mA at 24V. Permanent power supply 230V. A fuse with a maximum of 10A is required. 230V LED lamps up to 200W. For incandescent and halogen lamp loads up to 500W 1) and fluorescent lamps with KVG in DUO circuit up to 1000VA. Fluorescent lamps with KVG parallel compensated 300VA. Temperature at the installation point between -20°C and +50°C. Minimum command duration/command pause 20/300ms. Connections Low current side 4-pin pin housing for STOCKO MKF13264-6-0-404 plug, 230V side 6-pin terminal block with plug-in terminals, maximum conductor cross-section 2.5mm2. A Stocko plug is included with each device. 1) For lamps with max. 150W.

Property Value
Width in pitch units: 2.22
Rated switching current: 10 A
Control voltage 1: 12 to 24 V
Control voltage type 1: AC/DC
Installation depth: 28 mm
Function: other
Mounting type: other
Voltage type of supply voltage: AC
Supply voltage: 250 V
Max. incandescent lamp load: 500 W
Max. fluorescent lamp load (duo circuit): 1000 VA
Number of contacts as normally open: 1

Characteristics

Type of voltage of the supply voltageAC
Supply voltage250 V
ManufacturerELTAKO
HAN60100055
GTIN4010312101063
Number of contacts as normally open1
Width in pitch units2.22
Installation depth28 mm
FunctionOther
Mounting typeOther
Supply voltage250V
