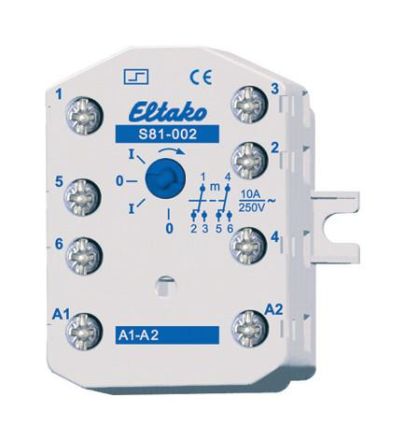

Eltako 81002030 impulse switch S81-002-230V

In stock

SKU: 187532

Price on request

€26.67

€0

Overview

2 changeover contacts 10A/250V AC. For flush and surface mounting with manual operation and switch position indicator. 50mm long, 42mm wide, 32mm deep. Duty cycle 100%. Control power requirement 5W. Contact spacing 2mm.

Property	Value
Rated switching current:	10 A
Control voltage 1:	230 V
Control voltage type 1:	AC
Installation depth:	32 mm
Function:	other
Mounting type:	Surface-mounted
Frequency of control voltage 1:	50 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	2300 VA
Max. fluorescent lamp load (duo circuit):	2300 VA
Max. fluorescent lamp load (parallel compensated):	500 VA
Max. switching current (cos phi = 0.6):	10 A
Number of contacts as changeover contact:	2
