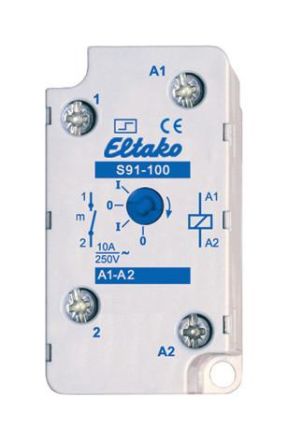

Eltako 91100010 impulse switch S91-100-8V

In stock

SKU: 187517

Price on request

€22.51

€0

Overview

1 normally open contact 10A/250V AC. For flush and surface mounting with manual operation and switch position indicator. 50mm long, 26mm wide, 32mm deep. Duty cycle 100%. Control power requirement 2.5W. Contact spacing 2mm. The electronic impulse switch ES61-UC can also be used. The universal control voltage UC covers the voltage range 8-253V AC 50-60Hz and 10-230V DC.

Property	Value
Width in modular spacing:	2.3
Rated switching current:	10 A
Control voltage 1:	8 V
Control voltage type 1:	AC
Installation depth:	32 mm
Function:	other
Mounting type:	Surface-mounted
Frequency of control voltage 1:	50 Hz
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load:	2300 VA
Max. fluorescent lamp load (duo circuit):	2300 VA
Max. fluorescent lamp load (parallel compensated):	500 VA
Max. Switching current (cos phi = 0.6):	10 A
Number of contacts as normally open:	1
