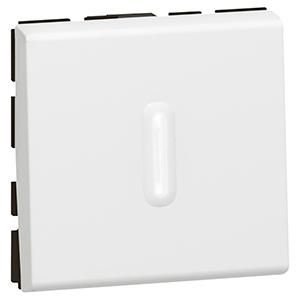

Legrand 077064 changeover switch MOSAIC BEL. 2P 20A WS , (white)

Legrand 077064 changeover switch MOSAIC BEL. 2P 20A WS , (white)

In stock

SKU: 243025

Price on request

€13.73

€0

Overview

2-pole changeover switch 20 A with lighting window for use with LED unit Order No. 067664. Inserts 250 V~ including 2-module rockers with screwless connections (SL). Inserts with lighting window are supplied without LED units. The desired function (either illuminated or control LED) is plugged into the insert.

Property	Value
Color:	white
Suitable for protection class (IP):	IP31
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Module carrier
Push button:	no
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	20 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	2
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Control and orientation
Rated current:	20 A
Installation depth:	32 mm
Device depth:	44 mm
Device width:	45 mm
Device height:	45 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of the device box:	30 mm
