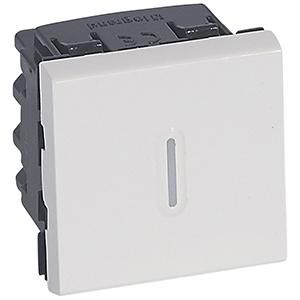

Legrand 077094 changeover switch MOSAIC 16A BEL 2M WS , (white)

Legrand 077094 changeover switch MOSAIC 16A BEL 2M WS , (white)

In stock

SKU: 243029

Price on request

€28.30

€0

Into a basketIn the basketGo

Overview

2-module insert with imprint 0/1. For use with LED unit (order no. 0676 64). Color: white

Property	Value
Color:	white
Suitable for protection class (IP):	IP41
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Module carrier
Push button:	no
Composition:	Modular device for installation switch programs
Mounting type:	snap in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	2
Lighting:	optional
Lighting type:	Glow lamp
Lighting function:	Control and orientation
Rated current:	16 A
Installation depth:	32 mm
Device depth:	44 mm
Device width:	45 mm
Device height:	45 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of the device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

HAN077094

Manufacturer

ColorWhite

GTIN3245060770945

Feedback contactNo

Circuit typeChangeover switch

LightingOptional

Switching current for fluorescent lamps16 AX

Push buttonNo

Washing machine switchNo

Lighting functionControl and orientation

Number of actuating rockers1

Operating modeRocker/Button

Mounting typeSnap into place

Rated current16A

Installation depth32 mm

Color

Connection typeScrew terminal

Suitable for protection class (IP)IP41

Device width45 mm

Device height45 mm

Device depth44 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeModule carrier

Nominal voltage250V

SurfaceUntreated

Number of modules (for modular construction)2

RAL number (similar)9003

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs

Surface finishGlittering
