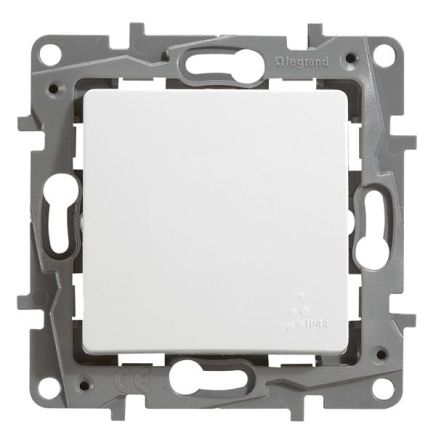

Legrand 664721 changeover switch Niloe IP44 10AX ultra white white, (white)

In stock
SKU: 243070
€11.35
Into a basketIn the basketGo

Overview

Inserts are supplied including a rocker / cover and protective cover. Fastening using screws or spreading claws - inserts for screw fastening can be retrofitted with spreading claws order no. 6650 99. Connection using plug-in (SL) or screw terminals (SK). To be equipped with LED unit for lighting function order no. 6650 90 / 92 or control function order no. 6650 91. Supplied with sealing pot order no. 6650 96. For use with standard cover frame order no. 6650 0x.

Property Value
Color: white
Suitable for protection class (IP): IP44
Circuit type: Toggle switch
Operating type: Rocker/button
Number of rocker switches: 1
Mounting type: Flush-mounted
Push button: no
Composition: Base element with central cover plate
Fastening type: Screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface: untreated
Surface finish: glossy
RAL number (similar): 9003
Nominal voltage: 250 V
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Washing machine switch: no
Connection type: other
Lighting: optional
Lighting type: LED replaceable
Lighting function: Control and orientation
Rated current: 10 A
Installation depth: 20 mm
Device depth: 47 mm
Device width: 78 mm
Device height: 78 mm
With mounting plate: yes
Text field/labeling area: no
Min. Depth of the device box: 30 mm

Characteristics

Insert Module TypeLight switch covers
HAN664721
ManufacturerLEGRAND
ColorWhite
GTIN3245066647210
Feedback contactNo
Circuit typeChangeover switch
LightingOptional
Switching current for fluorescent lamps10 AX
Push buttonNo
Washing machine switchNo
Lighting functionControl and orientation
Number of actuating rockers1
Operating modeRocker/Button
Mounting typeScrew fastening
Rated current10A
Installation depth20 mm
ColorWhite
Connection typeOther
Suitable for protection class (IP)IP44
Device width78 mm
Device height78 mm
Device depth47 mm
Halogen freeYes
Min. depth of the device box30 mm
With mounting plateYes
Mounting typeFlush-mounted
Nominal voltage250V
SurfaceUntreated
RAL number (similar)9003
Text field/label areaNo
MaterialPlastic
Material qualityThermoplastic
CompilationBase element with central cover plate
Surface finishGlittering
Legrand 664721 changeover switch Niloe IP44 10AX ultra white white, (white)
Legrand 664721 changeover switch Niloe IP44 10AX ultra white white, (white)
€11.35
Into a basketIn the basketGo
