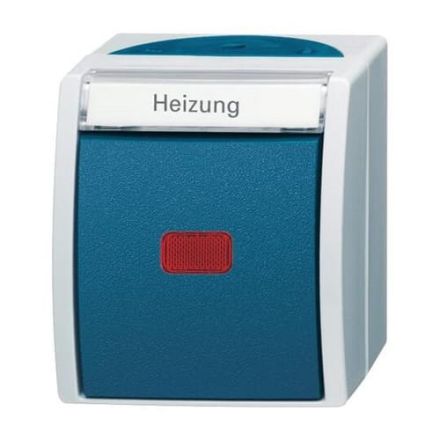

Busch-Jaeger 2601/2 SKWNH-53 rocker control switch/heating switch, off, 2-pole grey/blue-green

Busch-Jaeger 2601/2 SKWNH-53 rocker control switch/heating switch, off, 2-pole grey/blue-green

In stock

SKU: 118855

Price on request

€28.93

€0

Overview

With red cap. With glow lamp. With labeling field. Labeling field 57.8 x 9.8 mm. Label holder can be illuminated with lighting insert 2152 NLI-53. Switch can be illuminated by inserting lamp 8332-1, 8335-1, 8346-1, 8333-1 and 8358. Glow lamp 8346-1 included in delivery.

Property	Value
Color:	blue
Suitable for protection class (IP):	IP44
Circuit type:	2-pole switch
Operation type:	Rocker/button
Number of actuation rockers:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Basic element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7035
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Number of modules (with modular design):	1
Lighting:	optional
Lighting type:	other
Lighting function:	control and orientation
Rated current:	16 A
Device depth:	74 mm
Device width:	83 mm
Device height:	55 mm
With mounting plate:	no
Text field/label area:	yes
