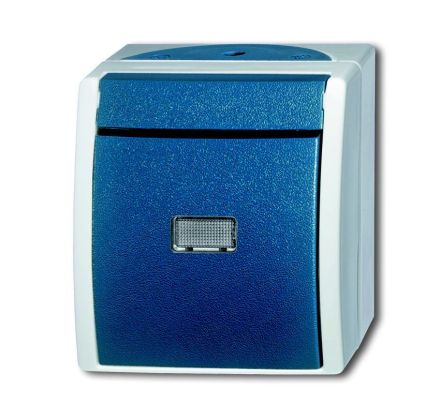

Busch-Jaeger 2601/6 WGL-53 rocker switch, on and off switching grey/blue-green

Busch-Jaeger 2601/6 WGL-53 rocker switch, on and off switching grey/blue-green

In stock

SKU: 118858

Price on request

€15.90

€0

Overview

With neutral (transparent) lens. With lighting. Can be labeled with label holder 1763-53. Label holder can be illuminated with lighting insert 2152 NLI-53. Switch can be illuminated by inserting lamp 8332-1, 8335-1, 8346-1, 8333-1 and 8358.

Property	Value
Color:	blue
Suitable for protection class (IP):	IP44
Circuit type:	Toggle switch
Operating method:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Basic element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7035
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Number of modules (with modular design):	1
Lighting:	optional
Lighting type:	other
Lighting function:	control and orientation
Rated current:	10 A
Device depth:	74 mm
Device width:	83 mm
Device height:	55 mm
With mounting plate:	no
Text field/label area:	yes
