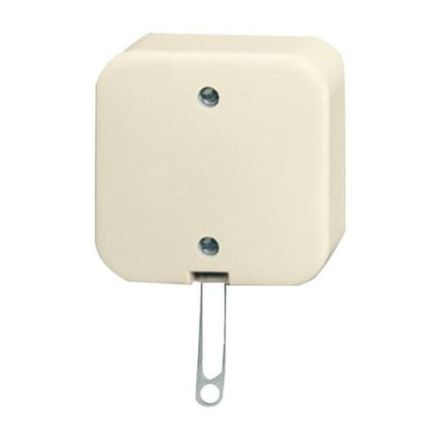

Busch-Jaeger 2610/6 AP pull switch, on and off switching white

Busch-Jaeger 2610/6 AP pull switch, on and off switching white

In stock

SKU: 120897

Price on request

€22.36

€0

Overview

Pull switch, white, dry surface-mounted, Busch-Duro 2000 AP, pull switch on and off switch with screw terminals. Nominal current: 10 A Protection class device: IP 20

Property	Value
Color:	white
Suitable for protection class (IP):	IP20
Switching type:	Changeover switch
Operating type:	Pull cord
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Duroplast
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	1013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Number of modules (with modular design):	1
Lighting:	optional
Lighting type:	other
Lighting function:	control and orientation
Rated current:	10 A
Device depth:	63 mm
Device width:	63 mm
Device height:	47 mm
With mounting plate:	no
Text field/labeling area:	no
