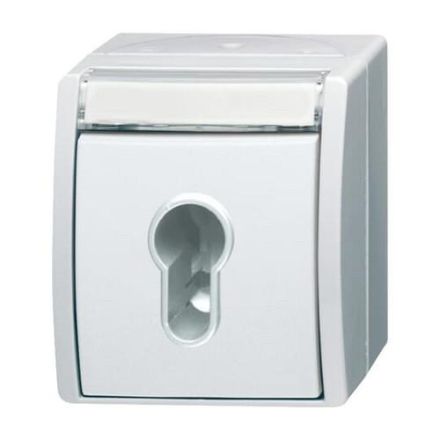

Busch-Jaeger 2733 SLW-54 key switch, off, 1-pole alpine white

In stock
SKU: 118872
€80.97
Into a basketIn the basketGo

Overview

Key switch, alpine white, surface-mounted IP 44, ocean (IP 44), key switch off, 1-pole For profile half cylinders. When switched on and off, the key can be removed in the middle position. With label field. Label field 57.8 x 9.8 mm IP 44 only in conjunction with corresponding locking cylinders. Nominal current: 10 AX Protection class device: IP 44

PropertyValue
Color:white
Suitable for protection class (IP):IP44
Circuit type:1-pole off switch
Operation type:Key
Number of actuating rockers:1
Mounting type:Surface-mounted
Push button:no
Composition:Basic element with complete housing
Fastening type:Screw fastening
Material:Plastic
Material quality:Thermoplastic
Halogen-free:yes
Surface:untreated
Surface finish:matt
RAL number (similar):9010
Nominal voltage:250 V
Switching current for fluorescent lamps:10 AX
Feedback contact:no
Washing machine switch:no
Connection type:Screw terminal
Number of modules (with modular design):1
Lighting:yes
Lighting type:other
Lighting function:Text field
Rated current:10 A
Device depth:74 mm
Device width:83 mm
Device height:55 mm
With mounting plate:no
Text field/label area:yes

Characteristics

ColorWhite
Feedback contactNo
Number of actuating rockers1
Circuit type1-pole switch
LightingYes
Switching current for fluorescent lamps10 AX
Push buttonNo
Washing machine switchNo
Lighting functionText field
HAB2733 SLW-54
ManufacturerBUSCH-JAEGER
HAN2CKA001101A0925
GTIN4011395094624
Connection typeScrew terminal
Number of modules (for modular construction)1
Surface finishFrosted
Operating modeKey
Mounting typeScrew fastening
Rated current10A
ColorWhite
Suitable for outdoor useNo
Suitable for protection class (IP)IP44
Device width83 mm
Device height55 mm
Device depth74 mm
Halogen freeYes
With mounting plateNo
Mounting typeSurface-mounted
Nominal voltage250V
SurfaceUntreated
RAL number (similar)9010
Text field/label areaYes
MaterialPlastic
Material qualityThermoplastic
CompilationBase element with complete housing
Busch-Jaeger 2733 SLW-54 key switch, off, 1-pole alpine white
Busch-Jaeger 2733 SLW-54 key switch, off, 1-pole alpine white
€80.97
Into a basketIn the basketGo
