Busch-Jaeger 2CKA006800A2908 64765 UJ-214 flex Set comfort switch

Busch-Jaeger 2CKA006800A2908 64765 UJ-214 flex Set comfort switch

In stock

SKU: 834387

Price on request

€104.31

€0

Overview

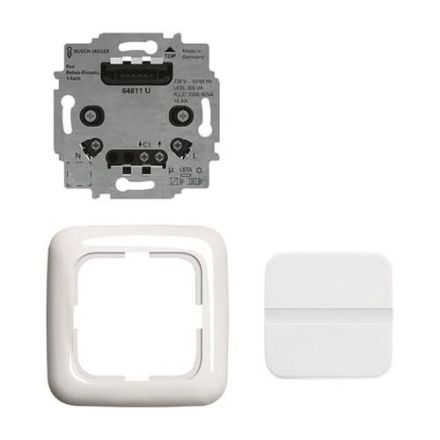

Ready-to-install motion detector pushbutton combination (set packaging). Consisting of Busch-Komfortschalter® control element flex, 64765-214. Consisting of relay insert flex, 1-way 64811 U. Consisting of Reflex SI cover frame, 1-way, 2511-214. The range information refers to an ambient temperature of 21 °C. Only install in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, Part 1 or Busch-Jaeger item no. 3040 flush-mounted box masonry, 3050 flush-mounted box hollow wall or 3060 flush-mounted box concrete)

Property	Value
Depth:	46 mm
Width:	81 mm
Height:	81 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 500 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	3 m
Scan angle:	10 °
Suitable for wall mounting:	yes
Min. duty cycle:	60 s
Max. Duty cycle:	10 min
Creep-under protection/rear field monitoring:	no
Response brightness adjustable:	yes
Response sensitivity adjustable:	no
Max. range frontal:	5 m
Max. Inrush current:	80 A
Sensor type:	passive infrared
Optimal mounting height:	1.1 m
Surface finish:	glossy
Surface:	untreated
Material quality:	thermoplastic
Number of switching zones:	1
Horizontal detection angle:	10 to 170 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	yes
Networkable:	yes
Staircase monitoring:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote control:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	yes
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	no
Installation depth:	25 mm
Min. depth of the device box:	25 mm

Characteristics

Bridging switchYes

With signal unitNo

Number of switching zones1

Response brightness5 to 500 lx

Forced shutdownYes

Max. inrush current80 A

Scanning angle10 °

Forced switching onYes

HAB64765 UJ-214 flex set

Manufacturer

HAN2CKA006800A2908

GTIN4011395294857

Dimming function with dimming insertYes

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishGlittering

Width81 mm

Installation depth25 mm

Detection angle horizontal10 to 170 °

Color

Remote controllableNo

Frequency50Hz

Suitable for outdoor useNo

Suitable for C-loadYes

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height81 mm

Constant light controlNo

Max. duty cycle10mins

Max. range frontal5 m

Max. range to one side3m

Max. switching capacity2300W

Min. duty cycle60s

Min. depth of the device box25 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1.1m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Depth46 mm

Animal corridorYes

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
