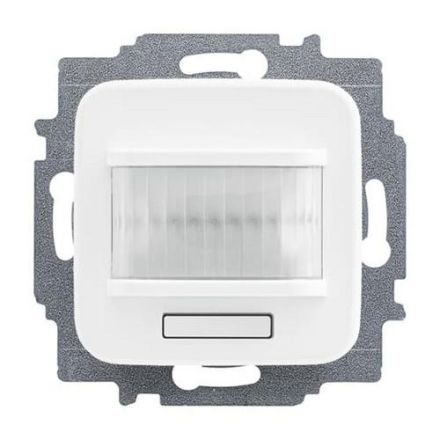

Motion detector/switching actuator 1-way, wireless, alpine white, Busch-free@home, sensor/actuator combinations, wireless, motion detector/switching actuator 1-way, wireless for Busch-free@home With select lens for detection with animal paths. Communication with the free@home system is wireless. For automatically switching Busch-free@home actuators depending on movement and brightness. The actuator's run-on time can be programmed via the system access point's web interface. For switching 230 V~ consumers. With integrated switching actuator. Switching function is also available without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). 3-wire connection technology (neutral conductor required). With 230 V extension input (on/off). With spreader fastening Rated frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic Rated current: 10 A Output voltage: 230 V~ Rated power: 2300 W Load type: capacitive Rated current: 10 AX Rated power: 2300 VA Load type: inductive Rated current: 10 A Rated power: 2300 VA Detection range: front: 6 m, side: 3 m Opening angle: 180 ° Brightness limit: 1 lux - 500 lux Installation height: 1.1 m - 1.3 m Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 71 mm x 71 mm x 53 mm Installation depth: 32 mm Installation position: vertical
