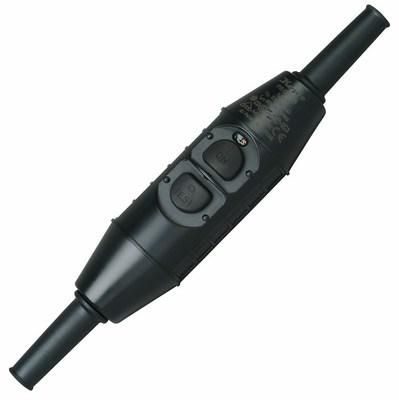

Kopp 196200015 PRCD-S 3-pole 30mA 16A 230V personal protection switch

Kopp 196200015 PRCD-S 3-pole 30mA 16A 230V personal protection switch

In stock

SKU: 546538

Price on request

€158.99

€0

Into a basketIn the basketGo

Overview

PRCD-S, IP55, 230 VAC, 16A, I n 30mA, 3-pole switching, test mark: GS from BG Cologne

Property	Value
Rated voltage:	230 V
Current:	16 A
Fault current:	30 A
Mounting type:	Cable
Protection class (IP):	IP55
Frequency:	50 Hz
Number of poles:	3
Selective type:	no
Residual current type:	A
Additional devices possible:	no
Short-circuit strength (Icw):	1,500 kA
Surge current strength:	0.025 kA
Short-time delayed type:	no
Rated insulation voltage Ui:	1500 V
Rated impulse withstand voltage Uimp:	2.50 kV
With locking device:	no
Ambient temperature during operation:	-25 to 40 °C
Pollution degree:	2
Connectable conductor cross-section, stranded:	1.50 to 2.50 mm²
Type of voltage:	AC
Explosion-proof:	no

Characteristics

HABPRCD-S 3-pole 30mA 16A 230V

Manufacturer

HAN196200015

GTIN4008224292405

Connectable conductor cross-section stranded1.50 to 2.50 mm²

Rated insulation voltage Ui1500V

Rated voltage230V

Rated impulse withstand voltage Uimp2.50kV

Explosion-proofNo

Residual current typeA

Frequency50Hz

Suitable for outdoor useNo

Short circuit strength (Icw)1,500kA

Short-time delayed typeNo

With locking deviceNo

Mounting typeCable

Number of poles3

IP protection)IP55

Selective typeNo

Voltage typeAC

Surge current strength0.025kA

Ambient temperature during operation-25 to 40 °C

Degree of contamination2

Additional equipment possibleNo

Kopp 196200015 PRCD-S 3-pole 30mA 16A 230V personal protection switch

Kopp 196200015 PRCD-S 3-pole 30mA 16A 230V personal protection switch

Price on request

€158.99

€0

Into a basketIn the basketGo
