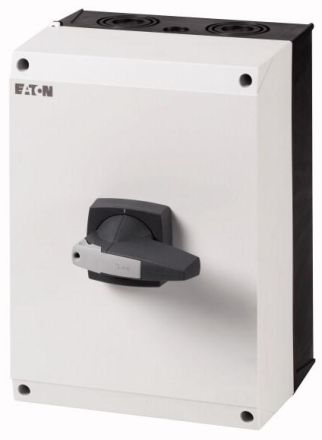

Eaton DMM-125/3/I5/PG main switch 3p, surface-mounted, padlock, 172850

Eaton DMM-125/3/I5/PG main switch 3p, surface-mounted, padlock, 172850

In stock

SKU: 220049

Price on request

€326.73

€0

Overview

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type code: DMM, with grey rotary handle, Note: in CI-K5 housing, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole, Note: 1 padlock, 5 mm, Lockability: lockable in 0 position, Protection class: IP65, Design: surface-mounted, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 59 kW, Rated continuous current: Iu = 125 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	59 kW
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Complete device in housing
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	50 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	gray
Rated operating voltage:	690 V
Rated continuous current at AC-21, 400 V:	125 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	66 A
Protection class (NEMA):	12

Characteristics

HABDMM-125/3/I5/PG

Manufacturer

HAN172850

GTIN4015081694310

Connection type main circuitScrew connection

Number of switches1

Designed as main switchYes

Designed as an EMERGENCY STOP deviceNo

Designed as a safety switchNo

Designed as a maintenance/repair switchYes

Version as reversing switchNo

Design of the actuating elementShort twist grip

Conditional rated short-circuit current Iq50kA

Rated operational power at AC-23, 400 V59kW

Rated operating voltage690V

Rated continuous current Iu125A

Rated continuous current at AC-21, 400 V125A

Rated continuous current at AC-23, 400 V66 A

Rated short-time withstand current Icw2.5kA

Color of the actuatorGray

Suitable for floor mountingYes

Suitable for front mounting 4-holeNo

Suitable for front mounting CentralNo

Suitable for distribution board installationNo

Suitable for intermediate constructionNo

Device typeComplete device in housing

Max. rated operating voltage Ue at AC690V

Motor drive integratedNo

Motor drive optionalNo

Number of poles3

Protection class (IP), frontIP65

Protection class (NEMA)12

Voltage release optionalNo

LockableYes
