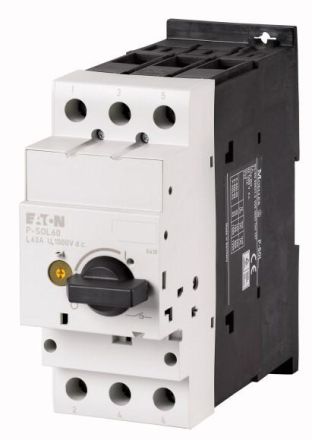

Eaton P-SOL60 60A DC load break switch, 120936

In stock

SKU: 475509

Price on request

€276.90

€0

Overview

Load break switches, standards and regulations: IEC/EN 60947-3, TÜV-validated, UL 508, CSA-C22.2 No. 14-10

Property	Value
Number of poles:	2
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	1000 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	Box terminal
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Rotary knob
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as Maintenance/repair switch:	no
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	no
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	1.5 kA
Color of the actuating element:	black
Rated operating voltage:	1000 V
Switching capacity at 400 V:	63 kW
Number of switches:	1
Protection class (NEMA):	other
