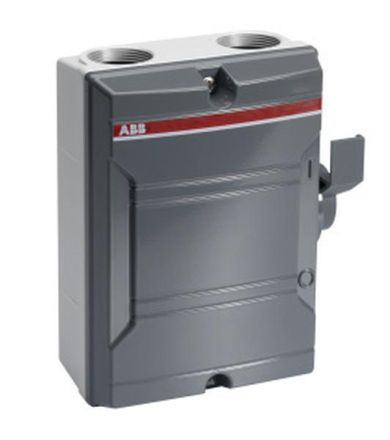

ABB Stotz-Kontakt KSE240DP, load-break switch in housing 2-pole 40A 230V with dark grey handle, 2CMA142414R1000

ABB Stotz-Kontakt KSE240DP, load-break switch in housing 2-pole 40A 230V with dark grey handle, 2CMA142414R1000

In stock

SKU: 461322

Price on request

€165.36

€0

Overview

KSE240DP load disconnector in housing 2-pole 40A 230V with dark grey handle aluminum housing IP65 entry top and bottom

Property	Value
Number of poles:	2
Operating power:	32 kW
Rated continuous current Iu:	40 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Complete device in housing
Design of the actuating element:	toggle lever
Suitable for floor mounting:	no
Integrated motor drive:	no
Suitable for front mounting 4-hole:	yes
Version as Maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Color of Actuating element:	gray
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	22 kW
Switching capacity at 400 V:	32 kW
Rated continuous current at AC-21, 400 V:	40 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	32 A
Protection class (NEMA):	4
