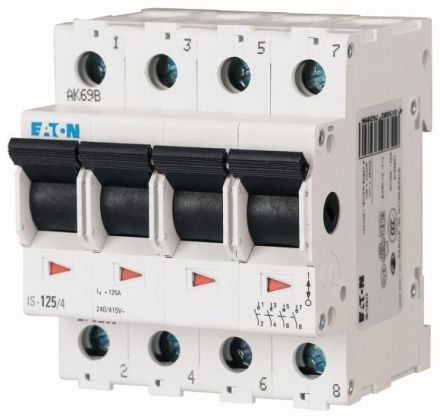

Eaton IS-125/4 main switch, 4p, 400V, 125A , 276289

In stock
SKU: 217996
€147.92
Into a basketIn the basketGo

Overview

Load switch with disconnecting function, design according to IEC/EN 60947-3, high wear resistance of the contacts, snap-on switching, toggle colour black, terminal cross-section 50qmm, busbar compatible with Xpole protective switching devices when using the jaw clamp in combination with standard fork busbar

PropertyValue
Number of poles:4
Rated current:125 A
Rated voltage:415 V
Width in modular spacing:4
Switching function:other
With signal lamp:no
Type of voltage:AC
Color of the cap:other
Light source:other
Protection class (IP):IP40
Min. rated voltage:240 V
Rated breaking capacity:10 kA
Short-circuit strength (Icw):2 kA
Lamp base:other
Installation depth:69.5 mm
Number of contacts as normally open:4
Number of contacts as normally closed:4

Characteristics

Color of the capOther
Rated breaking capacity10 kA
Min. rated voltage240 V
HABIS-125/4
ManufacturerEaton
HAN276289
GTIN4015082762896
Number of contacts as normally open4
Number of contacts as opener4
Rated voltage415V
Rated current125A
Width in pitch units4
Installation depth69.5 mm
Short circuit strength (Icw)2kA
LampsOther
With signal lampNo
Number of poles4
Switching functionOther
IP protection)IP40
Voltage typeAC
