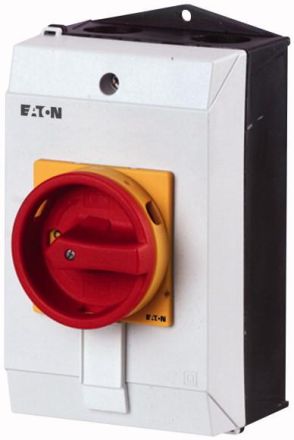

Main switch, Product range: Main switch, maintenance switch, repair switch, Type code: P1, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Information on scope of delivery: Auxiliary switch contact or neutral conductor can be retrofitted., 3-pole, Protection class: IP65, Design: Surface mounting, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 11 kW, Rated continuous current: Iu = 25 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 13 kW |
| Rated continuous current Iu: | 25 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Design as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | Screw connection |
| Device design: | Complete device in housing |
| Design of the actuating element: | Door coupling rotary drive |
| Suitable for floor mounting: | yes |
| Conditional rated short-circuit current Iq: | 50 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.64 kA |
| Color of the actuating element: | red |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Switching capacity at 400 V: | 13 kW |
| Rated continuous current at AC-21, 400 V: | 25 A |
| Number of Switch: | 1 |
| Rated continuous current at AC-23, 400 V: | 25 A |
| Protection class (NEMA): | 12 |
