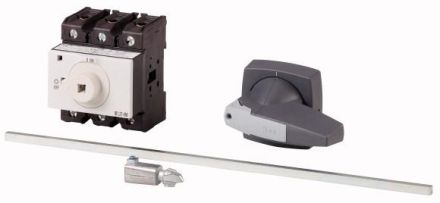

Eaton P3-100/M4/K2-PG main switch intermediate assembly, metal cover, 172827

Eaton P3-100/M4/K2-PG main switch intermediate assembly, metal cover, 172827

In stock

SKU: 224595

Price on request

€199.93

€0

Overview

Main switch, Product range: Main switch, maintenance switch, repair switch, Type code: P3, STOP function: HALT function, with black rotary handle and locking ring, Note: with metal axis for control cabinet depth 400 mm, Information on scope of delivery: Auxiliary switch contact or neutral conductor can be retrofitted., 3-pole, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Intermediate installation, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated continuous current: Iu = 100 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	55 kW
Rated continuous current Iu:	100 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	80 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	2 kA
Color of the actuating element:	grey
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	37 kW
Switching capacity at 400 V:	55 kW
Rated continuous current at AC-21, 400 V:	100 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	100 A
Protection class (NEMA):	12
