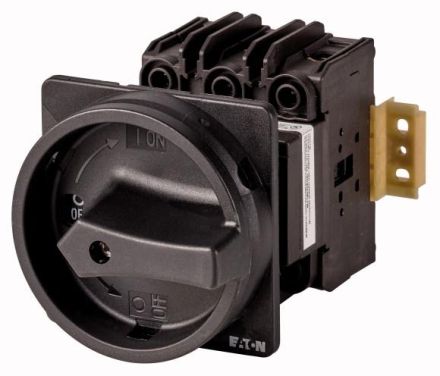

HABP3-30/V/SVB-SW-MCS
HAN237895
GTIN4015082378950
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementDoor coupling rotary drive
Conditional rated short-circuit current Iq100kA
Rated operating voltage480V
Rated continuous current Iu30A
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC480V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Protection class (IP), frontIP65
Protection class (NEMA)12
Voltage release optionalNo
LockableYes
