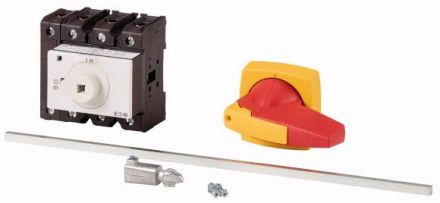

Eaton P3-63/M4/K2-PR/N main switch intermediate assembly, metal cover, 172812

Eaton P3-63/M4/K2-PR/N main switch intermediate assembly, metal cover, 172812

In stock

SKU: 224696

Price on request

€173.11

€0

Overview

Main switch, Product range: Main switch, maintenance switch, repair switch, Type code: P3, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Note: with metal axis for control cabinet depth 400 mm, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole + N, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Intermediate installation, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated continuous current: Iu = 63 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	30 kW
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	100 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	1.26 kA
Color of the actuating element:	red
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	30 kW
Switching capacity at 400 V:	30 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	12

Characteristics

HABP3-63/M4/K2-PR/N

Manufacturer

HAN172812

GTIN4015081693979

Connection type main circuitScrew connection

Number of switches1

Designed as main switchYes

Designed as an EMERGENCY STOP deviceNo

Designed as a safety switchNo

Designed as a maintenance/repair switchYes

Version as reversing switchNo

Design of the actuating elementShort twist grip

Conditional rated short-circuit current Iq100kA

Rated operational power at AC-23, 400 V30kW

Rated operational power at AC-3, 400 V30kW

Rated operating voltage690V

Rated continuous current Iu63 A

Rated continuous current at AC-21, 400 V63 A

Rated continuous current at AC-23, 400 V63 A

Rated short-time withstand current Icw1.26kA

Color of the actuatorRed

Suitable for floor mountingYes

Suitable for front mounting 4-holeNo

Suitable for front mounting CentralNo

Suitable for distribution board installationNo

Suitable for intermediate constructionYes

Device typeBuilt-in device Fixed installation technology

Max. rated operating voltage Ue at AC690V

Motor drive integratedNo

Motor drive optionalNo

Number of poles4

Switching capacity at 400 V30kW

Protection class (IP), frontIP65

Protection class (NEMA)12

Voltage release optionalNo

LockableYes
