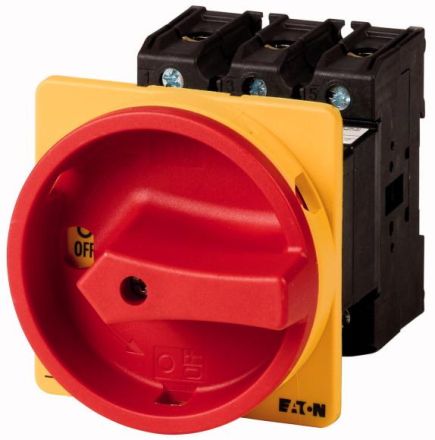

HABP3-63/V/SVB/2HI11
HAN014465
GTIN4015080144656
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceYes
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementDoor coupling rotary drive
Conditional rated short-circuit current Iq100kA
Rated operational power at AC-3, 400 V30kW
Rated operating voltage690V
Rated continuous current Iu63 A
Rated continuous current at AC-21, 400 V63 A
Rated continuous current at AC-23, 400 V63 A
Rated short-time withstand current Icw1.26kA
Color of the actuatorRed
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionYes
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V30kW
Protection class (IP), frontIP65
Protection class (NEMA)1
Voltage release optionalNo
LockableYes
