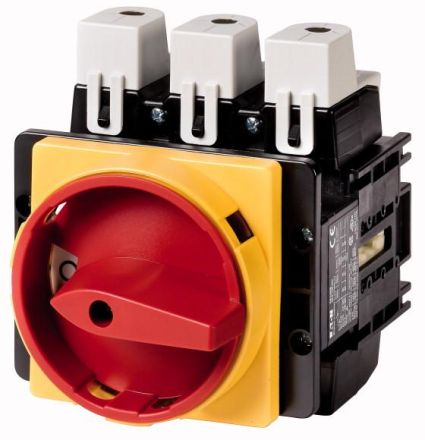

Eaton P5-125/EA/SVB/N main switch installation, 280910

Eaton P5-125/EA/SVB/N main switch installation, 280910

In stock

SKU: 224722

Price on request

€262.46

€0

Overview

Main switch, Product range: Main switch, maintenance switch, repair switch, Type code: P5, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole + N, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Built-in, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 45 kW, Rated continuous current: Iu = 125 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	45 kW
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP65
Connection type main circuit:	Box terminal
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	30 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	red
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	37 kW
Switching capacity at 400 V:	45 kW
Rated continuous current at AC-21, 400 V:	125 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	125 A
Protection class (NEMA):	12
