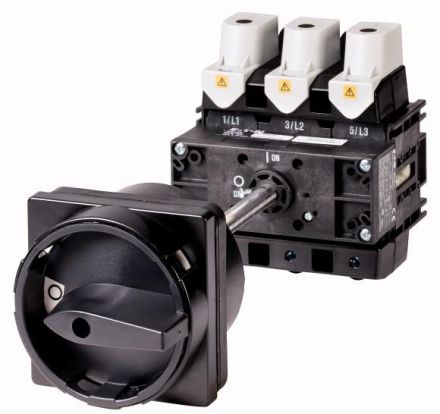

Eaton P5-250/V/SVB-SW/N main switch intermediate installation, 280947

Eaton P5-250/V/SVB-SW/N main switch intermediate installation, 280947

In stock

SKU: 224759

Price on request

€469.38

€0

Overview

Main switch, product range: main switch, maintenance switch, repair switch, type code: P5, STOP function: HALT function, with black rotary handle and locking ring, information on scope of delivery: auxiliary switch contact can be retrofitted., 3-pole + N, lockability: lockable in 0 position, protection class: front IP65, design: intermediate installation, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 90 kW, rated continuous current: Iu = 250 A, standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	90 kW
Rated continuous current Iu:	250 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	Box terminal
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	30 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	4.6 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	55 kW
Switching capacity at 400 V:	90 kW
Rated continuous current at AC-21, 400 V:	250 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	250 A
Protection class (NEMA):	12
