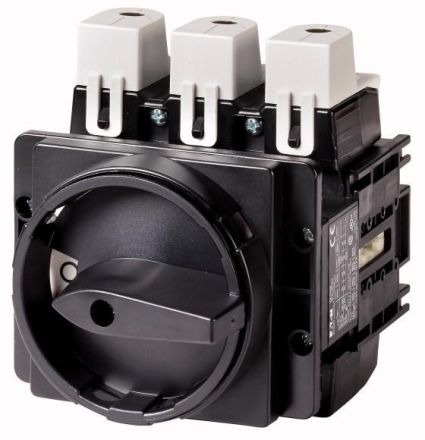

Eaton P5-315/EA/SVB-SW/N main switch installation, 280955

Eaton P5-315/EA/SVB-SW/N main switch installation, 280955

In stock

SKU: 224767

Price on request

€532.34

€0

Overview

Main switch, Product range: Main switch, maintenance switch, repair switch, Type code: P5, STOP function: HALT function, with black rotary handle and locking ring, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole + N, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Built-in, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated continuous current: Iu = 315 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	110 kW
Rated continuous current Iu:	315 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	Box terminal
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	15 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	yes
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	5.8 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	75 kW
Switching capacity at 400 V:	110 kW
Rated continuous current at AC-21, 400 V:	315 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	315 A
Protection class (NEMA):	12

Characteristics

HABP5-315/EA/SVB-SW/N

Manufacturer

HAN280955

GTIN4015082809553

Connection type main circuitFrame clamp

Number of switches1

Designed as main switchYes

Designed as an EMERGENCY STOP deviceNo

Designed as a safety switchNo

Designed as a maintenance/repair switchYes

Version as reversing switchNo

Design of the actuating elementDoor coupling rotary drive

Conditional rated short-circuit current Iq15kA

Rated operational power at AC-23, 400 V110kW

Rated operational power at AC-3, 400 V75kW

Rated operating voltage690V

Rated continuous current Iu315 A

Rated continuous current at AC-21, 400 V315 A

Rated continuous current at AC-23, 400 V315 A

Rated short-time withstand current Icw5.8kA

Color of the actuatorBlack

Suitable for floor mountingNo

Suitable for front mounting 4-holeYes

Suitable for front mounting CentralNo

Suitable for distribution board installationNo

Suitable for intermediate constructionNo

Device typeBuilt-in device Fixed installation technology

Max. rated operating voltage Ue at AC690V

Motor drive integratedNo

Motor drive optionalNo

Number of poles4

Switching capacity at 400 V110kW

Protection class (IP), frontIP65

Protection class (NEMA)12

Voltage release optionalNo

LockableYes
