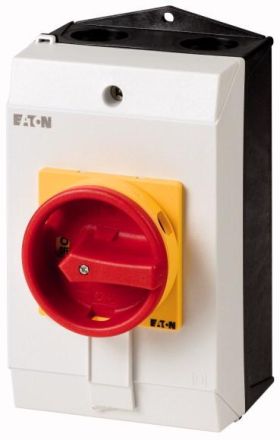

HABT3-3-130/I2/SVB
HAN222860
GTIN4015082228606
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed1
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceYes
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementDoor coupling rotary drive
Conditional rated short-circuit current Iq1kA
Rated operational power at AC-23, 400 V15kW
Rated operational power at AC-3, 400 V11kW
Rated operating voltage690V
Rated continuous current Iu32 A
Rated continuous current at AC-21, 400 V32 A
Rated continuous current at AC-23, 400 V32 A
Rated short-time withstand current Icw0.65kA
Color of the actuatorRed
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeComplete device in housing
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Switching capacity at 400 V15kW
Protection class (IP), frontIP65
Protection class (NEMA)12
Voltage release optionalNo
LockableYes
