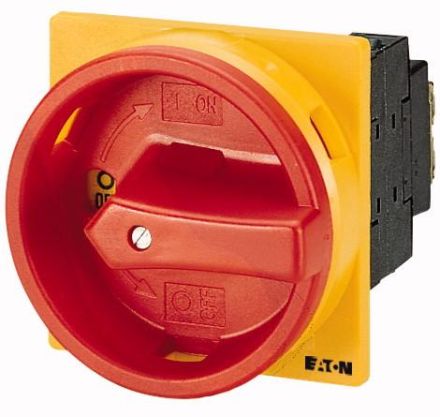

Eaton T3-4-15700/EA/SVB main switch installation, 008938

In stock

SKU: 227442

Price on request

€109.61

€0

Overview

Main switch, 6-pole + 2 NO contacts, 32 A, EMERGENCY STOP function, 90 °, installation

Eaton Type: T3-4-15700/EA/SVB
Eaton Article No.: 008938

Property	Value
Number of poles:	6
Operating power:	15 kW
Number of auxiliary contacts as normally open:	2
Rated continuous current Iu:	32 A
Max. Rated operating voltage Ue at AC:	690 V
Emergency stop device design:	yes
Protection class (IP), front:	IP65
Main circuit connection type:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	1 kA
Integrated motor drive:	no
Suitable for Front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as Reversing switch:	no
Rated short-time withstand current Icw:	0.65 kA
Color of the actuating element:	red
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	11 kW
Switching capacity at 400 V:	15 kW
Rated continuous current at AC-21, 400 V:	32 A
Number of switches:	1
Protection class (NEMA):	12
