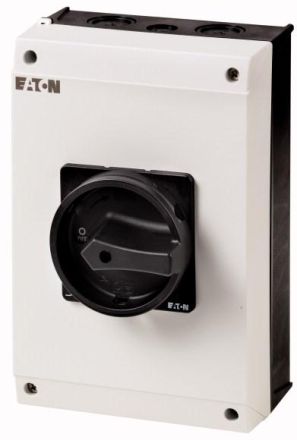

Eaton T5B-3-8901/I4/SVB-SW main switch assembly, 207245

Eaton T5B-3-8901/I4/SVB-SW main switch assembly, 207245

In stock

SKU: 227909

Price on request

€187.75

€0

Overview

Main switch, product range: main switch, maintenance switch, repair switch, type code: T5B, STOP function: HALT function, with black rotary handle and locking ring, 3-pole + N, lockability: lockable in 0 position, protection class: IP65, design: surface mounting, switching angle: 90 °, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 30 kW, rated continuous current: Iu = 63 A, 3 unit(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	30 kW
Number of auxiliary contacts as normally closed:	1
Number of auxiliary contacts as normally open:	1
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Complete device in housing
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	2 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	1.3 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	22 kW
Switching capacity at 400 V:	30 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	63 A
Protection class (NEMA):	12
