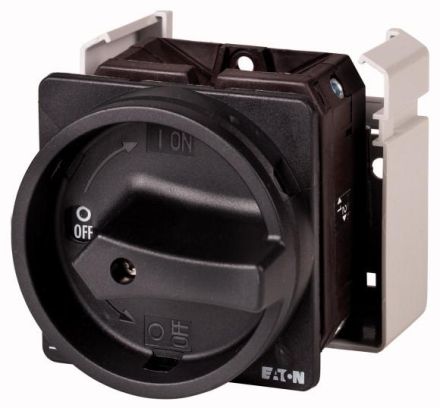

Eaton T5B-6-8348/EA/SVB-SW 91723 main switch installation, 091723

Eaton T5B-6-8348/EA/SVB-SW 91723 main switch installation, 091723

In stock

SKU: 228034

HAB:T5B-6-8348/EA/SVB-SW

Manufacturer:Eaton

HAN:091723

GTIN:4015080917236

Connection type main circuit:Screw connection

All specifications

Price on request

€253.30

€0

Into a basketIn the basketGo

Overview

Main switch, 12-pole, 63 A, STOP function, 90 °, installation

Eaton Type: T5B-6-8348/EA/SVB-SW
Eaton Article No.: 091723

Property	Value
Number of poles:	12
Operating power:	30 kW
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional rated short-circuit current Iq:	2 kA
Motor drive integrated:	no
Suitable for Front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as Reversing switch:	no
Rated short-time withstand current Icw:	1.3 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	22 kW
Switching capacity at 400 V:	30 kW
Rated continuous current at AC-21, 400 V:	63 A
Number of switches:	1
Protection class (NEMA):	12
