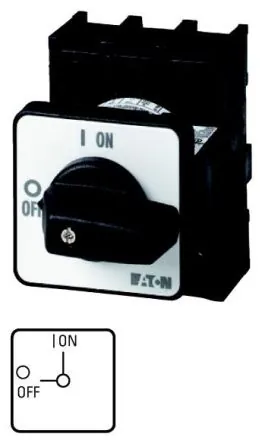

ON-OFF switch, 3-pole + 2 NO + 2 NC, 25 A, central installation
Eaton Type: P1-25/EZ/2HI11
Eaton Article No.: 012395
| Property | Value |
| Number of poles: | 3 |
| Operating power: | 13 kW |
| Number of auxiliary contacts as normally closed: | 2 |
| Number of auxiliary contacts as normally open: | 2 |
| Rated continuous current Iu: | 25 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | short rotary handle |
| Suitable for floor mounting: | no |
| Conditional rated short-circuit current Iq: | 80 kA |
| Motor drive integrated: | no |
| Suitable for Front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | yes |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as Reversing switch: | no |
| Rated short-time withstand current Icw: | 0.64 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Switching capacity at 400 V: | 13 kW |
| Rated continuous current at AC-21, 400 V: | 25 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 25 A |
| Protection class (NEMA): | 12 |
