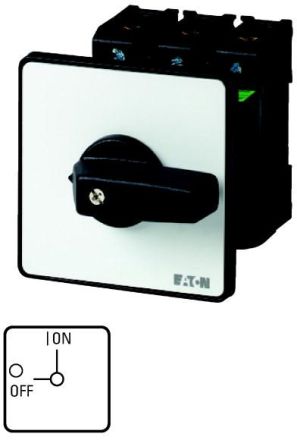

HABP3-100/Z/2HI11
HAN014339
GTIN4015080143390
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of switches1
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementDoor coupling rotary drive
Conditional rated short-circuit current Iq80kA
Rated operational power at AC-3, 400 V37kW
Rated operating voltage690V
Rated continuous current Iu100A
Rated continuous current at AC-21, 400 V100A
Rated continuous current at AC-23, 400 V100A
Rated short-time withstand current Icw2kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionYes
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V55kW
Protection class (IP), frontIP65
Protection class (NEMA)12
Voltage release optionalNo
LockableNo
