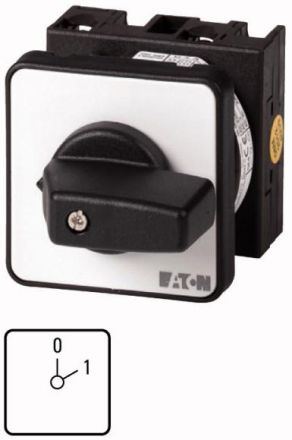

Eaton T0-1-8201/E control switch, 009476

In stock

SKU: 225890

Price on request

€22.34

€0

Overview

ON-OFF switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 2, Degree of protection: Front IP65, Design: Flush-mounted, Switching angle: 60 °, Switching behavior: latching, with 0 position, 1 unit(s), Rated continuous current: Iu= 20 A, Front plate: 0-1

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	2
Number of switching positions:	2
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	yes
Front plate size:	48x48 mm
Suitable for floor mounting:	no
Switch design:	On/off switch
NEMA protection class, front:	12
